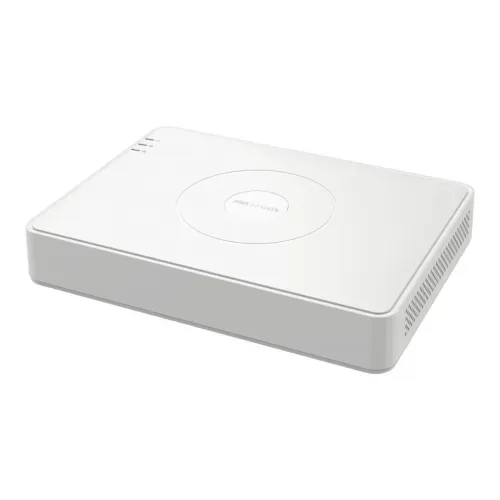

DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR
- 16 ChannelNumber of Channel
- 1080pRecording Resolution.
- 1x SATANumber HDD Interface
- 6TBMax. Storage Support
The Hikvision DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR is part of the DVR / XVR Recorders range at HTZ Technology, supplied as a genuine Hikvision product. Highlights include number of channel of 16 Channel, recording resolution. of 1080p and number hdd…
Add to Package Builder- 100% Genuine Products Authorized distributor
- Best Price Guarantee Get the best deal
- Home Delivery Anywhere in Bangladesh
Home delivery anywhere in Bangladesh.
Found damage or any issue? Tell us within 3 working days of purchase, or no refund or replacement applies. Warranty stays valid. Read the policy
Need help choosing? Ask via WhatsApp 1 Year Warranty
Product Description
The Hikvision DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR is part of the DVR / XVR Recorders range at HTZ Technology, supplied as a genuine Hikvision product. Highlights include number of channel of 16 Channel, recording resolution. of 1080p and number hdd interface of 1x SATA.
It comes with 1 year warranty, and our engineers can supply it with professional installation, configuration and after-sales support in Dhaka and Gazipur; home delivery is available anywhere in Bangladesh. Contact HTZ Technology for project pricing, bulk quantities or a free site survey (Dhaka and Gazipur).
- Number of Channel: 16 Channel
- Recording Resolution.: 1080p
- Number HDD Interface: 1x SATA
- Max. Storage Support: 6TB
| Brand | Hikvision |
|---|---|
| Model | DS-7116HGHI-M1/T |
| SKU | DS-7116HGHI-M1/T |
| Audio and Video | |
| IP Camera Input | 16 Channel |
| Two-Way Talk | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Display | |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF |
| Recording | |
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF |
| Bit Rate | 32 Kbps to 4 Mbps Audio Bitrate: 64 Kbps |
| Others | Dual-stream Support Total Bandwidth: 96 Mbps |
| Playback And Backup | |
| Sync Playback | 16-ch |
| Network | |
| Ethernet Port | 1 x RJ45 10M/100M self-adaptive Ethernet interface |
| Maximum User Access | 128 |
| Storage | |
| Internal HDD | Up to 6TB |
| HDD Mode | 1 x SATA |
| Auxiliary Interface | |
| USB | 2 x USB 2.0 |
| Power | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <- 7 W (without HDD) |
| Component Environment | |
| Operational Conditions | Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% |
| Construction | |
| Dimensions | 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch) |
| Net Weight | <- 1.8 kg |
| Warranty | |
| Manufacturing Warranty | 1 Year Warranty |
- Number of Channel: 16 Channel
- Recording Resolution.: 1080p
- Number HDD Interface: 1x SATA
- Max. Storage Support: 6TB
