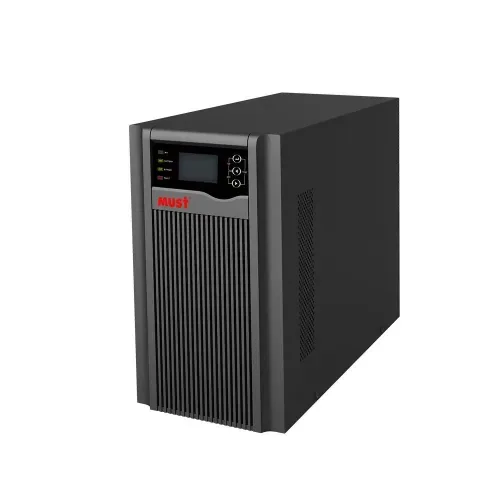

EH55-H1K3 1KVA Online UPS
- 1KVA/1KWRated Capacity
- 208/220/230/240VACInput Voltage
- Lead Acid BatteryBattery Type
- 3*12V/7AhBattery Capacity
The Must EH55-H1K3 1KVA Online UPS is part of the Online Double-Conversion UPS range at HTZ Technology, supplied as a genuine Must product. Highlights include rated capacity of 1KVA/1KW, input voltage of 208/220/230/240VAC and battery type of Lead Acid Battery.
Add to Package Builder- 100% Genuine Products Authorized distributor
- Best Price Guarantee Get the best deal
- Home Delivery Anywhere in Bangladesh
Home delivery anywhere in Bangladesh.
Found damage or any issue? Tell us within 3 working days of purchase, or no refund or replacement applies. Warranty stays valid. Read the policy
Need help choosing? Ask via WhatsApp
Product Description
The Must EH55-H1K3 1KVA Online UPS is part of the Online Double-Conversion UPS range at HTZ Technology, supplied as a genuine Must product. Highlights include rated capacity of 1KVA/1KW, input voltage of 208/220/230/240VAC and battery type of Lead Acid Battery.
Our engineers can supply it with professional installation, configuration and after-sales support in Dhaka and Gazipur; home delivery is available anywhere in Bangladesh. Contact HTZ Technology for project pricing, bulk quantities or a free site survey (Dhaka and Gazipur).
- Rated Capacity: 1KVA/1KW
- Input Voltage: 208/220/230/240VAC
- Battery Type: Lead Acid Battery
- Battery Capacity: 3*12V/7Ah
| Brand | Must |
|---|---|
| Model | EH55-H1K3 |
| SKU | EH55-H1K3 |
| Main Feature | |
| Capacity | 1KVA/1KW |
| Display Type | 2×8PIN/Pitch2.54mm, supports 128-bit segment code, up to 4 buttons + 4 LEDs, can display operating mode/load / input/output, etc. |
| Load Capacity | AC mode: 30min@102%~110% Load; 10min@110%~130% Load; 30s@130%~150% Load; 200ms@>150% Load Battery mode: 10min@102%~110% Load; 1min@110%~130% Load; 10s@130%~150% Load; 200ms@>150% Load |
| Input Voltage | 208/220/230/240VAC |
| Output Voltage | 208/220/230/240VAC |
| Noise Level | ≤45db |
| Battery | Battery type: Lead Acid Battery Rated Battery Voltage: 36V Battery Spec: 3*12V/7Ah Number of Internal Battery: 2/3(optional) |
| Others | With double conversion online design, zero output transfer time. Adopt DSP digital control Adopt the technology of active power factor correction technology (PFC) With 3-5 minutes can work when on full loads. Cold start by battery without grid Input. |
| Input Features | |
| Frequency | 50/60±6Hz (Default), ±10Hz (Settable) |
| Power Factor | L+N+PE |
| Voltage Range | 110~300VAC |
| Output Features | |
| Voltage Range | 208/220/230/240VAC |
| Power Factor | L+N+PE |
| Transfer Time | 4ms |
| Physical Specification | |
| Dimension | 143*222*354mm |
| Weight | 10 kg |
| Manufacture Warranty | |
| Warranty | 1 Year (Box Mandatory While Claiming) Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
- Rated Capacity: 1KVA/1KW
- Input Voltage: 208/220/230/240VAC
- Battery Type: Lead Acid Battery
- Battery Capacity: 3*12V/7Ah
