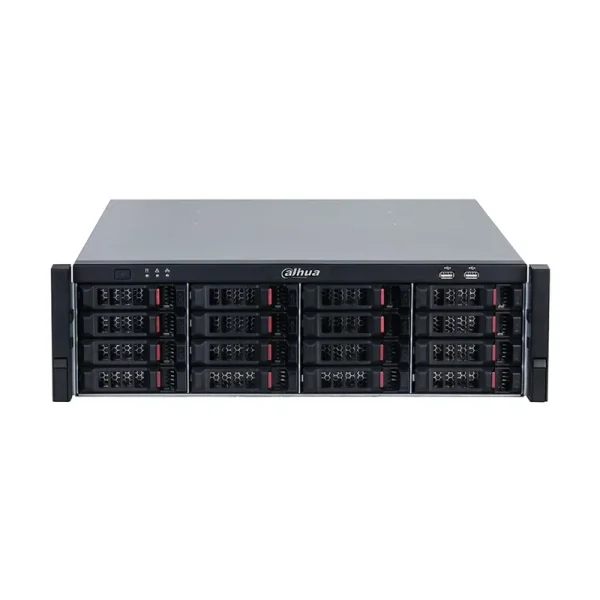

Dahua IVSS7116-8I 256CH 3U Intelligent Video Surveillance Server
Price on Request
- 256 ChannelNumber of Input Channel
- NoDual Stream Support
- 16 SATANumber HDD Interface (SATA)
- 20TBMax. Storage Support
The Dahua IVSS7116-8I 256CH 3U Intelligent Video Surveillance Server is part of the Face Recognition AI Servers range at HTZ Technology, supplied as a genuine Dahua product. Highlights include number of input channel of 256 Channel, dual stream support of No and…
Add to Package Builder- 100% Genuine Products Authorized distributor
- Best Price Guarantee Get the best deal
- Home Delivery Anywhere in Bangladesh
Home delivery anywhere in Bangladesh.
Found damage or any issue? Tell us within 3 working days of purchase, or no refund or replacement applies. Warranty stays valid. Read the policy
Need help choosing? Ask via WhatsApp 2 Year (without Adapter) Warranty
Product Description
The Dahua IVSS7116-8I 256CH 3U Intelligent Video Surveillance Server is part of the Face Recognition AI Servers range at HTZ Technology, supplied as a genuine Dahua product. Highlights include number of input channel of 256 Channel, dual stream support of No and number hdd interface (sata) of 16 SATA.
It comes with 2 year (without adapter) warranty, and our engineers can supply it with professional installation, configuration and after-sales support in Dhaka and Gazipur; home delivery is available anywhere in Bangladesh. Contact HTZ Technology for project pricing, bulk quantities or a free site survey (Dhaka and Gazipur).
- Number of Input Channel - 256 Channel
- Dual Stream Support - No
- Number HDD Interface (SATA) - 16 SATA
- Max. Storage Support - 20TB
- Color - Black
| Brand | Dahua |
|---|---|
| Model | Dahua IVSS7116-8I 256CH |
| SKU | DAHUA-IVSS7116-8I-256CH |
| Type | Surveillance Server |
| Number of Input Channel | 256 Channel |
| Video Output (VGA) | 1 |
| Video Output (HDMI) | 1 |
| Max. Video Recording Res. | Unmentioned |
| Audio Input Channel (RCA) | 1 channel |
| Dual Stream Support | No |
| Number HDD Interface (SATA) | 16 SATA |
| USB Port | 4 x ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports a the rear panel. |
| Approx. Power Consumption | Working(all HDDs connected): <- 250W(853 BTU, Working(without HDD): <- 150W(512 BTU), Rated: <- 550W(1877 BTU) |
| Color | Black |
| Dimensions | 444.8 x 522.4 x 133.2mm |
| Weight (Kg) | 20.05 kg |
| Smart Phone Supported | DMSS |
| Warranty | 2 Year (Without Adapter) |
| Type | Surveillance Server |
| Number of Input Channel | 256 Channel |
| Video Compression/Format | Smart H.265+;H.265;Smart H.264+;H.264 |
| Video Output (VGA) | 1 |
| Video Output (HDMI) | 1 |
| Max. Video Recording Res. | Unmentioned |
| Audio Input Channel (RCA) | 1 channel |
| Audio Compression | G.711a;G.711u;PCM;G.726 |
| Dual Stream Support | No |
| Decoding Capability | 1-channel 32 MP @30 fps; 2-channel 24 MP@30 fps; 3-channel 24 MP @24 fps; 4-channel 16 MP@25 fps; 7-channel 12 MP @20 fps; 7-channel 8 MP @30 fps; 14-channel 8 MP @15 fps; 9-channel 6 MP@30 fps; 11-channel 5 MP @30 fps; 13-channel 5 MP@25 fps; 14-channel 4 MP @30 fps; 22-channel 4 MP@20 fps; 18-channel 3 MP @30 fps; 22-channel 3 MP @25 fps; 14-channel 1080p @60 fps; 28-channel 1080p@30 fps; 63-channel 720p @30 fps |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; iSCSI |
| Network Interface (RJ45) | 4 x RJ-45 ports 10/100/1000/2500Mbps self-adaptive Ethernet ports |
| POE Interface | No |
| Number HDD Interface (SATA) | 16 SATA |
| Max. Storage Support | 20TB |
| eSATA | 1 |
| USB Port | 4 x ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports a the rear panel. |
| Main Processor | 64-bit multi-core processor |
| Display Split | 1st Screen: Max.64-channel; 2nd Screen: Max.16-channel; 3rd Screen: Max.1-channel; 4th Screen: Max.1-channel |
| Incoming Bandwidth | 768 Mbps |
| Outgoing Bandwidth | 768 Mbps |
| Interoperability | ONVIF (Profile S, T and G); CGI; SDK |
| Video Detection | Motion Detection |
| Backup Storage | HDD, peripheral USB storage device |
| Operating System. | Embedded Linux |
| Smart Phone Supported | DMSS |
| Power Supply | 100-127/ 200-240VAC, 50/60Hz, 7/3.5A |
| Approx. Power Consumption | Working(all HDDs connected): <- 250W(853 BTU, Working(without HDD): <- 150W(512 BTU), Rated: <- 550W(1877 BTU) |
| Color | Black |
| Dimensions | 444.8 x 522.4 x 133.2mm |
| Weight (Kg) | 20.05 kg |
| Warranty | 2 Year (Without Adapter) |
| Feature | 64-bit High-performance multi-core processor, 256-channel IP video access, Max 768 Mbps/ 768 Mbps incoming/recording bandwidth, Up to 128-channel AI IVS, Up to 128-channel face recognition with normal IPC, Up to 160-channel 2 MP or 80-channel 4 MP face recognition with face detection IPC, Up to 128-channel video metadata, Up to 128-channel AcuPick with normal IPC, Up to 100 face databases with 500,000 face pictures in total, Up to 128-channel 1080p intelligent video compression, 16 bays, supports RAID 0/1/5/6/10/50/60, 4 HDMI/1 VGA video output |
| Others | Operating Interface Web (PCAPP), local GUI, AI Applications: AI by Camera, Face detection; face recognition; video metadata (human; vehicle; non-motor vehicle); IVS; license plate comparison; tripwire people counting; regional people counting; abnormal number of people in queue; smoking detection; call detection; face & body detection; SMD, AI by Recorder: face detection; face recognition; entry frequency; video metadata (human, vehicle, non-motor vehicle); metadata attributes alarm by recorder; IVS; AcuPick, 1. AI by Recorder: Supports 128-channel 2 MP or 128-channel 4 MP resolution. 2. AI by Camera: Supports 160-channel 2 MP or 80-channel 4 MP resolution, Face Detection: 1. AI by Recorder: 128-channel 2 MP or 128-channel 4 MP with normal IP camera; 2. AI by Camera: 160-channel 2 MP or 80-channel 4 MP resolution with face detection IP camera; 3. Supports 6 properties: gender, age, glasses, expression, face mask, and beard. Search by Image Search by image in the face database, search by face or human body images, and 1:1 face recognition. Face Database Capacity: 1,100 human face databases with 500,000 face pictures in total. 2. 5 passerby databases with 500,000 face pictures in total The human face database and the passerby database share the total capacity and number of face images. Face Recognition: 1. AI by Recorder: 128-channel 2 MP or 128-channel 4 MP with normal IP camera; 160-channel 2 MP or 80-channel 4 MP with face detection IP camera (totally 160 x 2 MP or 80 x 4 MP face pictures analyzed per second); 2. AI by Camera: 160-channel 2 MP or 80-channel 4 MP with face recognition IP camera; 3. Supports entries frequency alarm License Plate Database Capacity, Reverse play; Frame by frame; 2. Full-screen; Backup (clip and file); Snapshot; Digital zoom; Audio on and off Disk Group Yes, Network Disk iSCSI, RAID RAID0; RAID1; RAID5; RAID6; RAID10; RAID50; RAID60, Record Management. Supports record control (continuous, event-based, scheduled, scheduled & event-based). General Alarm: Motion detection, tampering, local alarm, IPC external alarm, fire alarm, temperature alarm, temperature difference alarm, hot spot alarm, cold spot alarm, anomaly alarm, IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction, no HDD, network security exception, power exception. Alarm Linkage: Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email; and smart tracking. Disarming alarm linkage action by period or one-click sync disarm config with channels, Alarm Input: 16 channels, Alarm Output: 8 channels, Disk Interface: 16 slots, SATA 3.0. Max. 20 TB/HDD, HDMI 4 ports. HDMI 1 supports 4K output, a VGA 1 port, and a network port with 4 RJ-45 ports. 10/100/1000/2500 Mbps self-adaptive Ethernet ports, Power single supply, Disk Bay 16, Form Factor 3U, Fan Intelligent Speed Regulation Fan, Operating Temperature: 0 degrees C to +45 degrees C, Operating Humidity: 10%-80% (RH), non-condensing, Operating Altitude: 5000 m (16404.20 ft), Installation Desktop; Rack, Certifications CE-LVD: EN 62368-1, CE-EMC: EN IEC 61000-3-2, EN 61000-3-3, EN 55032, EN 50130-4, EN 55035. |
| Country Of Origin | China |
| Made in/ Assemble | China |
- Number of Input Channel - 256 Channel
- Dual Stream Support - No
- Number HDD Interface (SATA) - 16 SATA
- Max. Storage Support - 20TB
- Color - Black
