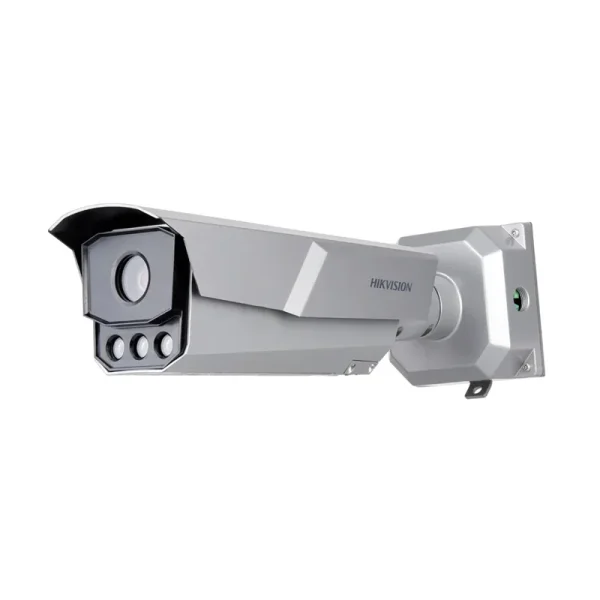

Hikvision iDS-TCM403-BI-UHK 4MP 2.8-12mm High Performance IR ANPR Bullet IP Camera

Price on Request

OutdoorUsage
BulletForm-Factor
4.0Mega Pixels (MP)
ColorNight Vision Mode

The Hikvision iDS-TCM403-BI-UHK 4MP 2.8-12mm High Performance IR ANPR Bullet IP Camera is part of the Automatic Number Plate (ANPR) range at HTZ Technology, supplied as a genuine Hikvision product. Highlights include usage of Outdoor, form-factor of Bullet and mega pixels (mp)…

100% Genuine Products Authorized distributor
Best Price Guarantee Get the best deal
Home Delivery Anywhere in Bangladesh

Home delivery anywhere in Bangladesh.

Found damage or any issue? Tell us within 3 working days of purchase, or no refund or replacement applies. Warranty stays valid. Read the policy

Need help choosing? Ask via WhatsApp 2 Year (without Adapter) Warranty

Product Description

The Hikvision iDS-TCM403-BI-UHK 4MP 2.8-12mm High Performance IR ANPR Bullet IP Camera is part of the Automatic Number Plate (ANPR) range at HTZ Technology, supplied as a genuine Hikvision product. Highlights include usage of Outdoor, form-factor of Bullet and mega pixels (mp) of 4.0.

It comes with 2 year (without adapter) warranty, and our engineers can supply it with professional installation, configuration and after-sales support in Dhaka and Gazipur; home delivery is available anywhere in Bangladesh. Contact HTZ Technology for project pricing, bulk quantities or a free site survey (Dhaka and Gazipur).

Usage - Outdoor
Form-Factor - Bullet
Mega Pixels (MP) - 4.0
Night Vision Mode - Color
Working Distance - Unmentioned

Brand	Hikvision
Model	Hikvision iDS-TCM403-BI-UHK
SKU	HIKVISION-IDS-TCM403-BI-UHK
Usage	Outdoor
Type	Bullet IP Camera
Number of Camera	1
Mega Pixels (MP)	4.0
Max. Camera Resolution	2688 x 1520
Number of Lens	Single Lens (Primary)
Lens	2.8-12mm DC-IRIS
Night Vision	Yes
Night Vision Mode	Color
Mic & Speaker	No
Wi-Fi	No
Card Slot	1
Viewing Angle.	Horizontal: 113.5 Degree to 39 Degree, Vertical: 58.4 Degree to 22.7 Degree, Diagonal: 141.3 Degree to 44.3 Degree
Working Distance	Unmentioned
Approx. Power Consumption	15W
Body Material	Aluminum Alloy
Color	Gray
Dimensions	428.5 x 120 x 132.8mm
Weight (gm)	Approx. 3000 gm
Warranty	2 Year (Without Adapter)
Usage	Outdoor
Type	Bullet IP Camera
Number of Camera	1
Camera Type	Fixed
Mega Pixels (MP)	4.0
Max. Camera Resolution	2688 x 1520
Sensor Type.	1/1.8 Inch progressive scan CMOS
Resolution	Main Stream: 2688 x 1520, 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288, Sub-Stream: 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288, Third Stream: 1280 x 760, 704 x 576, 352 x 288
Shutter Speed	Main Stream: 2688 x 1520, 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288, Sub-Stream: 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288, Third Stream: 1280 x 760, 704 x 576, 352 x 288
Day & Night	IR cut filter
Night Vision	Yes
Night Vision Mode	Color
Number of Lens	Single Lens (Primary)
Lens	2.8-12mm DC-IRIS
Focal Length	2.8-12mm
PTZ	No
Viewing Angle.	Horizontal: 113.5 Degree to 39 Degree, Vertical: 58.4 Degree to 22.7 Degree, Diagonal: 141.3 Degree to 44.3 Degree
General Function	One-key reset, three streams, heartbeat, password protection, watermark
Dual-Stream	Yes
Triple-Stream	Yes
Frame Rate	25 fps, 30 fps
Noise Reduction	Yes
Digital Noise Reduction (DNR)	3D DNR
Wide Dynamic Range (WDR)	140 dB
Interface(s)	1 RJ45 10M/100M/1000M Ethernet interface
Wi-Fi	No
Security	Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
Password Protection	Yes
Watermark	Yes
Dust Protection	Yes
Water Protection	Yes
Simultaneous Live View	Up to 6 channels
Scanning System	Progressive
Video Type	H.264 and H.265 encoding, Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG
Wavelength	850 nm
Mic & Speaker	No
Ingress Protection Grade	IP67
Working Distance	Unmentioned
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,I GMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
Supported Operating System	Linux
Form-Factor	Bullet
Card Slot	1
Storage Type	MicroSD
Storage Supported	Up to 512GB
Body Material	Aluminum Alloy
Color	Gray
Dimensions	428.5 x 120 x 132.8mm
Weight (gm)	Approx. 3000 gm
Power Supply	DC 12 V to 24 V, 1.25 A, two-core terminal block, PoE: 802.3at, Type 2, Class 4
Approx. Power Consumption	15W
Operating Temperature	-30 Degree C to 70 Degree C
Storing/Storage Temperature	-30 Degree C to 60 Degree C
Operating Humidity	Humidity 95% or less (non-condensing)
Storing/Storage Humidity	Humidity 95% or less (non-condensing)
Warranty	2 Year (Without Adapter)
Others	Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON), Focus Auto: Iris Type DC-IRIS, Apeture: 2.8-12mm : F1.38, Built-in Supplement Light Type IR light, Built-in Supplement Light Range Up to 40 m, Video Bit Rate 32 Kbps to 16 Mbps, H.264 Type Baseline profile/Main profile/High profile, H.265 Type Main profile, Audio Compression G.711/G.722.1, Audio Bit Rate 8Kbps (G.711) /16Kbps (G.722.1), API ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP, User/Host Up to 32 users, 3 user levels: administrator, operator, and user, local storage and CVR, NVR, ANPR, Web Browser Chrome V61+, IE9 to IE11, Firefox V41+, Edge, Image Settings: Rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser. Day/Night Switch Auto/Scheduled/Manual, Image Enhancement BLC, 3D DNR, Alarm 1 input interface, 1 output interface, 2 relays, RS-485 1 RS-485 interface, Wiegand 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit), Coverage Up to 3 lane(s), Capture Speed Range 5 to 120 km/h Approval: EMC, Safety, Environment, Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013, Anti-Corrosion Protection.
Specialty	Basic Event: HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception. Smart Function: Traffic flow detection vehicle type, lane flow, lane speed, space headway, time headway, lane time occupancy rate, lane space occupancy rate, queuing length, and traffic status Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving. No License Plate Detection. Motorcycle LPR. Seat Belt Detection, Mobile Phone Detection, Without Helmet Detection, Wrong Way Detection, High quality imaging with 4 MP resolution. Clear imaging against strong back light due to 140 dB WDRtechnology. Built-in ANPR engine, equipped with AI algorithm. Efficient H.265+ compression technology to save bandwidth andstorage. Water and dust resistant (IP67) and vandal proof (IK10). Camera shall connect with external light, radar etc.
Country Of Origin	China
Made in/ Assemble	China
