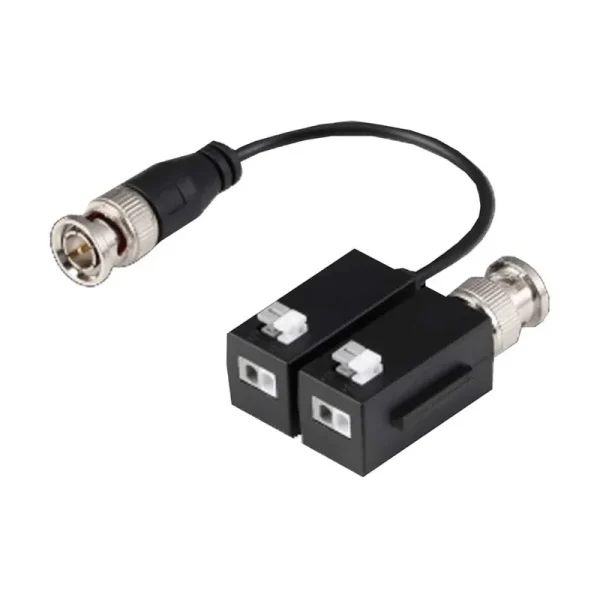

Dahua DH-PFM800B-4K 1 Channel Passive Video Balun connector

Price on Request

Video Baluns Conn…Type
CC CameraUse For
Not ApplicablePlug Type
Not ApplicableInput Voltage

The Dahua DH-PFM800B-4K 1 Channel Passive Video Balun connector is part of the Video Balun Transceivers range at HTZ Technology, supplied as a genuine Dahua product. Highlights include type of Video Baluns Connector, use for of CC Camera and plug type of…

100% Genuine Products Authorized distributor
Best Price Guarantee Get the best deal
Home Delivery Anywhere in Bangladesh

Home delivery anywhere in Bangladesh.

Found damage or any issue? Tell us within 3 working days of purchase, or no refund or replacement applies. Warranty stays valid. Read the policy

Need help choosing? Ask via WhatsApp No Warranty

Product Description

The Dahua DH-PFM800B-4K 1 Channel Passive Video Balun connector is part of the Video Balun Transceivers range at HTZ Technology, supplied as a genuine Dahua product. Highlights include type of Video Baluns Connector, use for of CC Camera and plug type of Not Applicable.

It comes with no warranty, and our engineers can supply it with professional installation, configuration and after-sales support in Dhaka and Gazipur; home delivery is available anywhere in Bangladesh. Contact HTZ Technology for project pricing, bulk quantities or a free site survey (Dhaka and Gazipur).

Type - Video Baluns Connector
Use For - CC Camera
Color - Black

Brand	Dahua
Model	Dahua DH-PFM800B-4K
SKU	DAHUA-DH-PFM800B-4K
Type	Video Baluns Connector
Plug Type	Not Applicable
Input Voltage	Not Applicable
Output Voltage	Not Applicable
Use For	CC Camera
Body Material	ABS
Dimensions (WxHxD)	TX: 19.5 x 21 x 173.8mm, RX: 19.5 x 49.01 x 21mm
Weight	34 gm
Color	Black
Warranty	No warranty
Others	Transmission Signal: 1-CH, Network cable Type: UTP CAT5E/6 (material: CU), Transmission Properties: (HDCVI 720P: max.400m (1312.34ft), 1080P: max.250m (820.21ft), 4M/5M/4K: max.200m (656.17ft), TVI 720P: (max.400m (1312.34ft), 1080P: max.250m, (820.21ft), 4M/5M: max.200m, (656.17ft), AHD 720P: max.400m (1312.34ft), 1080P: max.250m (820.21ft), 4M/5M: max.200m (656.17ft)), Coaxial Video Connector: BNC-M, Connection Way: RJ45, Compatible Format: HDCVI/TVI/AHD/CVBS, Resolution: 720P/1080P/4MP/5MP/4K, ESD: (1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per: IEC61000-4-2), UTP Cable Connector: (2KV(different-mode), 4KV(common-mode), Per: IEC61000-4-5), BNC Male Impedance: 75 ohms, UTP Cable Impedance: 100 ohms, Operating Temperature: -30 to +70 degree C, Operating Humidity: 95% RH, Storage Temperature: -40 to +80 degree C.
Country Of Origin	China
Made in/ Assemble	China
